前言
Spring Boot Actuator 是 spring-boot 自带监控功能 ,可以帮助实现对程序内部运行情况监控,比如监控状况、Bean 加载情况、环境变量、日志信息、线程信息等。
Spring Boot Admin是一个针对 spring-boot 的 actuator 接口进行 UI 美化封装的监控工具。他可以:
- 在列表中浏览所有被监控 spring-boot 项目的基本信息,
- 详细的Health信息、内存信息、JVM 信息、垃圾回收信息、各种配置信息(比如数据源、缓存列表和命中率)等,
- 还可以直接修改 logger 的 level。
搭建
创建子module spring-cloud-alibaba-2021-admin
,pom.xml 内容如下
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>spring-cloud-alibaba-2021</artifactId>
<groupId>org.example</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>spring-cloud-alibaba-2021-admin</artifactId>
<packaging>pom</packaging>
<modules>
<module>admin-client</module>
<module>admin-server</module>
</modules>
<properties>
<admin.version>2.5.3</admin.version>
</properties>
<dependencyManagement>
<dependencies>
<!-- SpringBoot Admin 服务端 -->
<dependency>
<groupId>de.codecentric</groupId>
<artifactId>spring-boot-admin-starter-server</artifactId>
<version>${admin.version}</version>
</dependency>
<!-- SpringBoot Admin 客户端 -->
<dependency>
<groupId>de.codecentric</groupId>
<artifactId>spring-boot-admin-starter-client</artifactId>
<version>${admin.version}</version>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<!-- web支持 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
</dependencies>
</project>
创建二级子module
创建 监控中心服务端server
在 spring-cloud-alibaba-2021-admin
工程下在创建子module admin-server
, pom.xml 内容如下
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>spring-cloud-alibaba-2021-admin</artifactId>
<groupId>org.example</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>admin-server</artifactId>
<dependencies>
<!-- SpringBoot Admin 服务端依赖 -->
<dependency>
<groupId>de.codecentric</groupId>
<artifactId>spring-boot-admin-starter-server</artifactId>
</dependency>
<!-- spring security -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<!-- nacos 服务注册发现(客户端)依赖 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!-- nacos-config 配置中心依赖 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
</dependency>
<!--spring-cloud-dependencies 2020.0.0 版本不在默认加载bootstrap.yml 文件,如果需要加载bootstrap 文件需要手动添加依赖-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-bootstrap</artifactId>
</dependency>
</dependencies>
</project>
application.yml
配置文件如下
server:
port: 7001
spring:
# 后面的bean会覆盖前面相同名称的bean
main:
allow-bean-definition-overriding: true
# 安全认证
security:
user:
# 账号
name: admin
# 密码
password: 123456
boot:
admin:
ui:
# 网页标题
title: spring-cloud-alibaba-2021微服务监控
bootstrap.yml
配置文件内容如下
spring:
application:
name: admin-server-demo
profiles:
active: yexindong_active
nacos-server-addr: http://chn520.cn:8848
cloud:
nacos:
discovery:
server-addr: ${spring.profiles.nacos-server-addr} # 服务注册中心地址
namespace: public # 注册到nacos的名称空间,默认为public
config:
# namespace: public # 如果是默认的public,则不需要指定名称空间,否则控制台会一直打印日志
file-extension: yaml # 指定yaml格式的配置, 必须要放到bootstrao.yml 才会生效,放到application下不会生效
server-addr: ${spring.profiles.nacos-server-addr} #配置中心地址
group: DEFAULT_GROUP
# 指定配置文件,可指定多个
shared-configs[0]:
data-id: spring-cloud-alibaba-config.yaml
refresh: true # 是否自动刷新
监控中心服务端配置类WebSecurityConfig.java
package com.alibaba.cloud.config;
import de.codecentric.boot.admin.server.config.AdminServerProperties;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
/**
* 监控权限配置
*
*/
@Configuration
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
/**
* 上下文路径
*/
private final String contextPath;
/**
* 构造函数
* @param adminServerProperties
*/
public WebSecurityConfig(AdminServerProperties adminServerProperties) {
this.contextPath = adminServerProperties.getContextPath();
}
@Override
protected void configure(HttpSecurity http) throws Exception {
SavedRequestAwareAuthenticationSuccessHandler successHandler = new SavedRequestAwareAuthenticationSuccessHandler();
successHandler.setTargetUrlParameter("redirectTo");
successHandler.setDefaultTargetUrl(contextPath + "/");
http.headers().frameOptions().disable()
.and().authorizeRequests()
.antMatchers(contextPath + "/assets/**"
, contextPath + "/login"
, contextPath + "/actuator/**"
, contextPath + "/instances/**"
).permitAll()
.anyRequest().authenticated()
.and()
.formLogin().loginPage(contextPath + "/login")
.successHandler(successHandler).and()
.logout().logoutUrl(contextPath + "/logout")
.and()
.httpBasic().and()
.csrf()
.disable();
}
}
启动类 AdminServerApp.java
package com.alibaba.cloud;
import de.codecentric.boot.admin.server.config.EnableAdminServer;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@EnableAdminServer
public class AdminServerApp {
/**
* 启动后访问地址: http://localhost:7001 即可查看监控信息
* @param args
*/
public static void main(String[] args) {
SpringApplication.run(AdminServerApp.class, args);
}
}
启动main
方法,在浏览器输入http://localhost:7001
, 因为已经将当前服务注册到了nacos,而admin监控中心会自动去nacos取所有的服务地址,所以可以看到监控中心有自己的服务;
创建监控中心客户端 client
在 spring-cloud-alibaba-2021-admin
工程下在创建子module admin-client
, pom.xml 内容如下
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>spring-cloud-alibaba-2021-admin</artifactId>
<groupId>org.example</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>admin-client</artifactId>
<dependencies>
<!-- SpringBoot Admin 客户端 -->
<dependency>
<groupId>de.codecentric</groupId>
<artifactId>spring-boot-admin-starter-client</artifactId>
</dependency>
<!-- SpringBoot Actuator 依赖,admin就是对Actuator封装了一层,增加了一些功能 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<!-- nacos 服务注册发现(客户端)依赖 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!-- nacos-config 配置中心依赖 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
</dependency>
<!--spring-cloud-dependencies 2020.0.0 版本不在默认加载bootstrap.yml 文件,如果需要加载bootstrap 文件需要手动添加依赖-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-bootstrap</artifactId>
</dependency>
</dependencies>
</project>
application.yml
内容如下
server:
port: 9001
spring:
boot:
# admin: # 若已将服务注册到nacos,则这里不需要指定,监控中心会自动去nacos取服务列表
# client:
# # 监控中心地址
# url:
# - http://localhost:7001
# 暴露我们的所有监控信息
management:
endpoints:
web:
exposure:
include: '*'
bootstrap.yml
内容如下
spring:
application:
name: admin-client-demo # 取pom文件中 artifactId 标签的值
profiles:
active: yexindong_active
nacos-server-addr: http://chn520.cn:8848
cloud:
nacos:
discovery:
server-addr: ${spring.profiles.nacos-server-addr} # 服务注册中心地址
namespace: public # 注册到nacos的名称空间,默认为public
config:
# namespace: public # 如果是默认的public,则不需要指定名称空间,否则控制台会一直打印日志
file-extension: yaml # 指定yaml格式的配置, 必须要放到bootstrao.yml 才会生效,放到application下不会生效
server-addr: ${spring.profiles.nacos-server-addr} #配置中心地址
group: DEFAULT_GROUP
# 指定配置文件,可指定多个
shared-configs[0]:
data-id: spring-cloud-alibaba-config.yaml
refresh: true # 是否自动刷新
启动类 AdminClientApp.java
package com.libaba.cloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class AdminClientApp {
public static void main(String[] args) {
SpringApplication.run(AdminClientApp.class, args);
}
}
启动 main

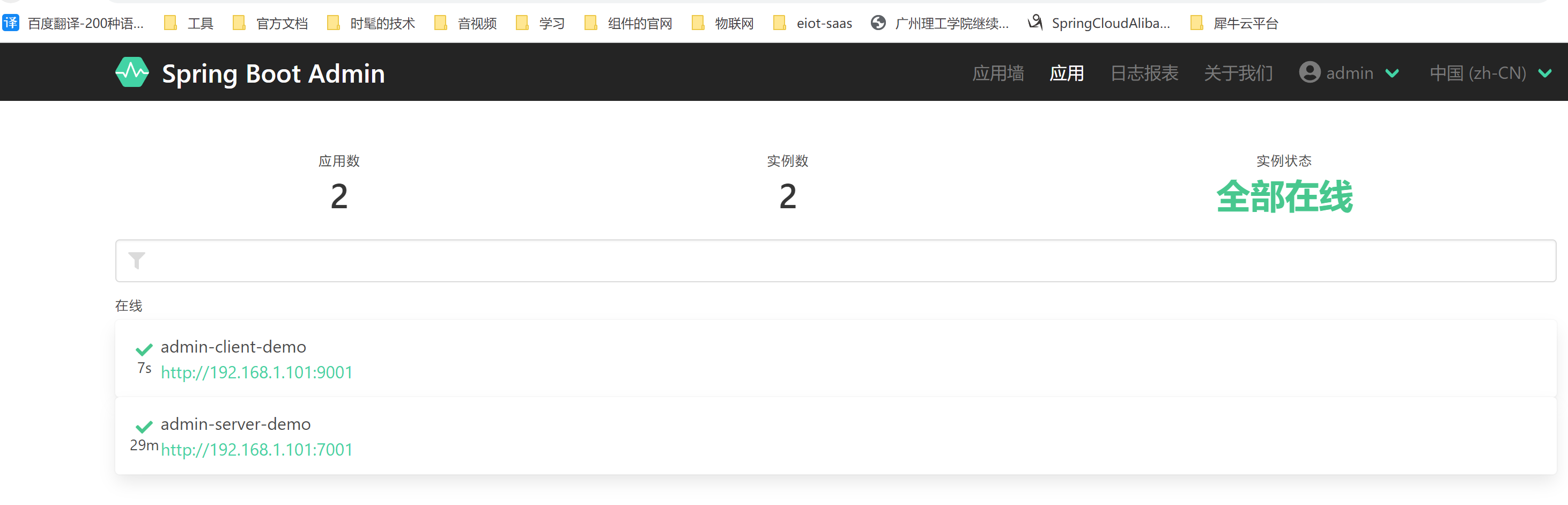

方法,然后再次访问 http://localhost:7001
,监控中心显示如下,可以看到,已经对客户端进行监控了

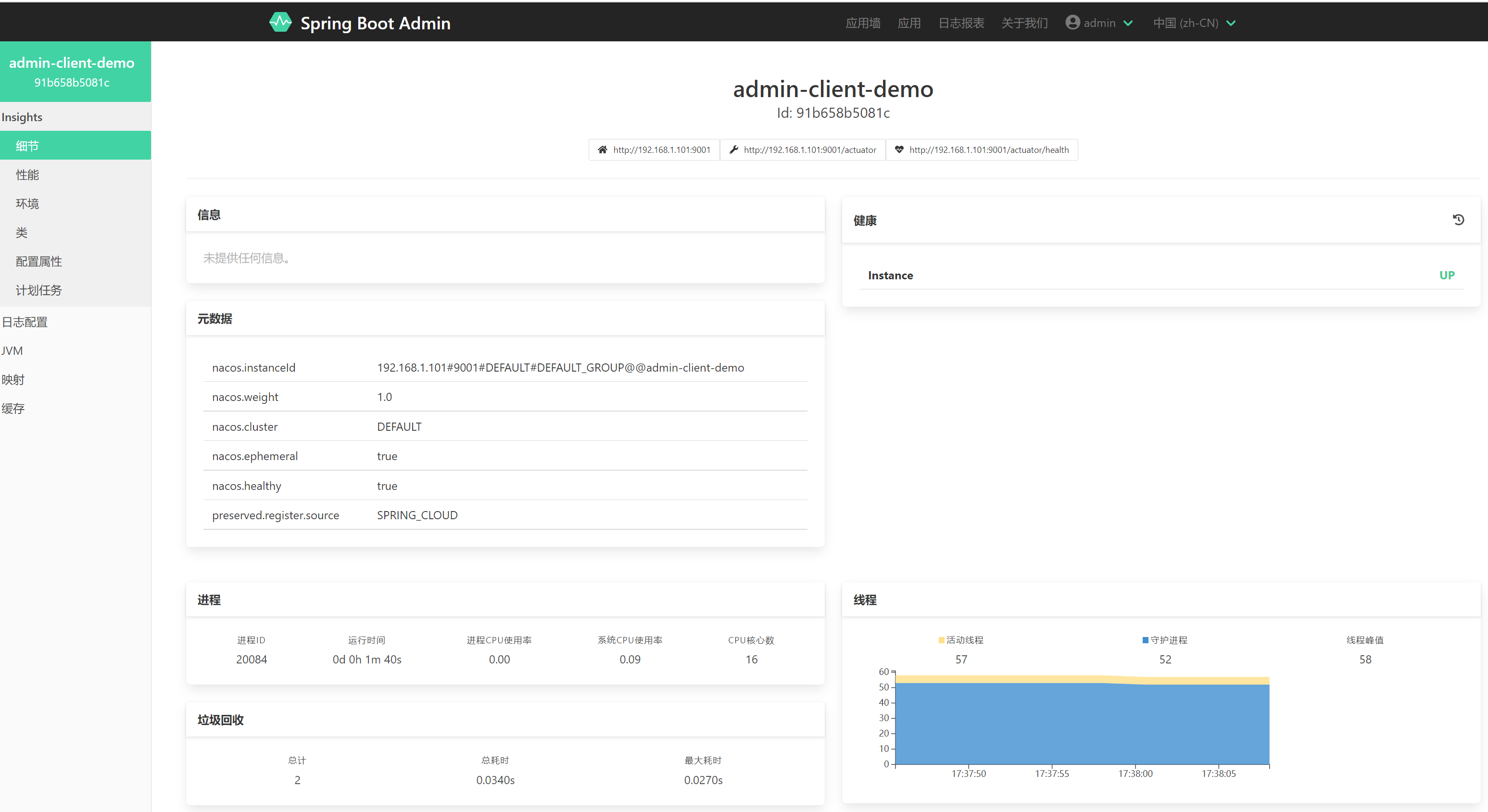

接着我们点进去,就可以看到该服务的所有监控信息
项目结构图

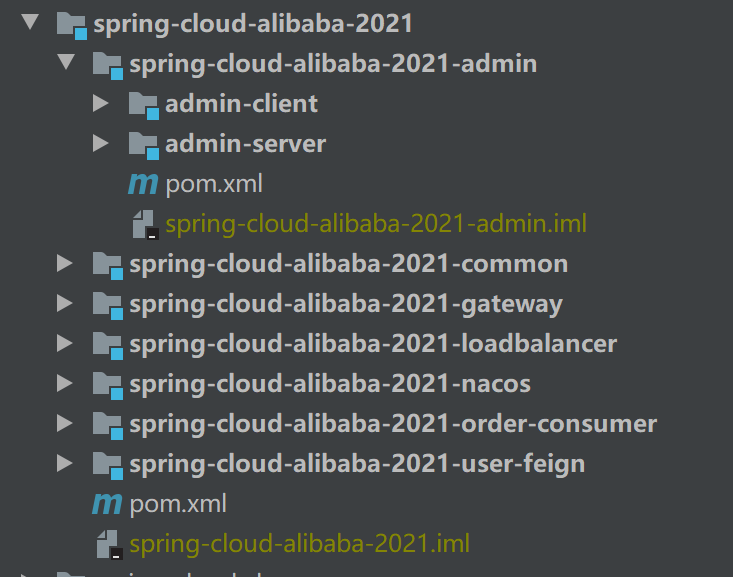

整体项目结构如下

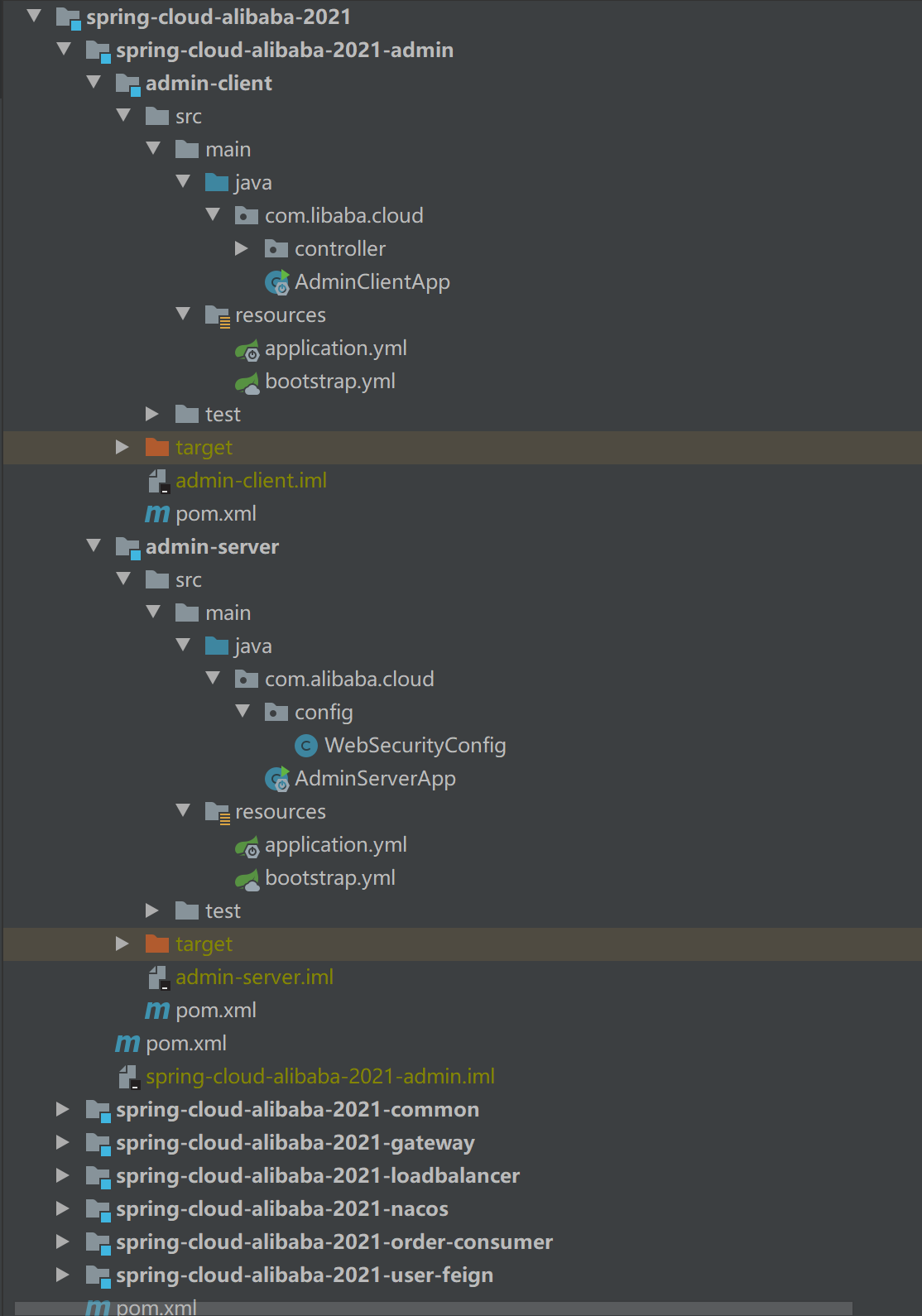

在来张展开后的结构图
